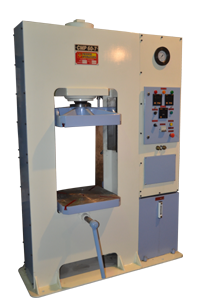

These down stroke (Semi Automatic) Press have been specially designed for moulding Bakelite, Melamine, Urea FRP, SMC, DMC, Ceramic. These presses ensures operation. Tool Sheeting & routine maintenance.
| TECHNICAL SPECIFICATIONS : |
| Technical Data |
CMP 40 |
CMP 70 |
CMP 100 |
CMP 160 |
CMP-250 |
| Maximum Pressure Force |
40 Ton |
70 Ton |
100 Ton |
160 Ton |
250 Ton |
| Maximum Opening Force |
20 Ton |
35 Ton |
50 Ton |
50 Ton |
100 Ton |
| Size of Palten table |
430 x 430 mm |
510 x 510 mm |
610 x 610 mm |
710 x 710 mm |
900 x 900 mm |
| Maximum Day light |
450 mm |
600 mm |
700 mm |
800 mm |
1000 mm |
| Minimum Day light |
250 mm |
300 mm |
350 mm |
400 mm |
500 mm |
| Distance between side column |
400 mm |
530 mm |
640 mm |
750 mm |
950 mm |
| Maximum stroke of piston |
200 mm |
300 mm |
350 mm |
400 mm |
500 mm |
Stroke of manual
ejector |
125 mm |
150 mm |
150 mm |
150 mm |
.... |
| Maximum working Pressure |
320 Kg/cm |
320 Kg/cm |
320 Kg/cm |
320 Kg/cm |
320 Kg/cm |
| Approach mm/sec |
75 |
70 |
50 |
60 |
50 |
| Returne mm/sec |
75 |
70 |
50 |
60 |
50 |
| Pressing mm/sec |
4 |
2.2 |
2.0 |
2.0 |
3.2 |
| Electric Moter (HP) |
3 |
3 |
5 |
7.5 |
10 |
| Legnth X Width X Height |
1000x 700 x 500 mm |
1220 x 900 x 2130 mm |
1325 x 1000 x 2400 mm |
------ |
------ |
Machines are available in Manual and PLC operated model
We reserve the rights to alter specifications & dimensions withoutnotice.
|
|
|
|
